4K60Hz HDMI Video Wall Controller Multiviewer Seamless Switch Matrix W1422
Sale price
$39.95
Regular price $162.10
Skip to product information

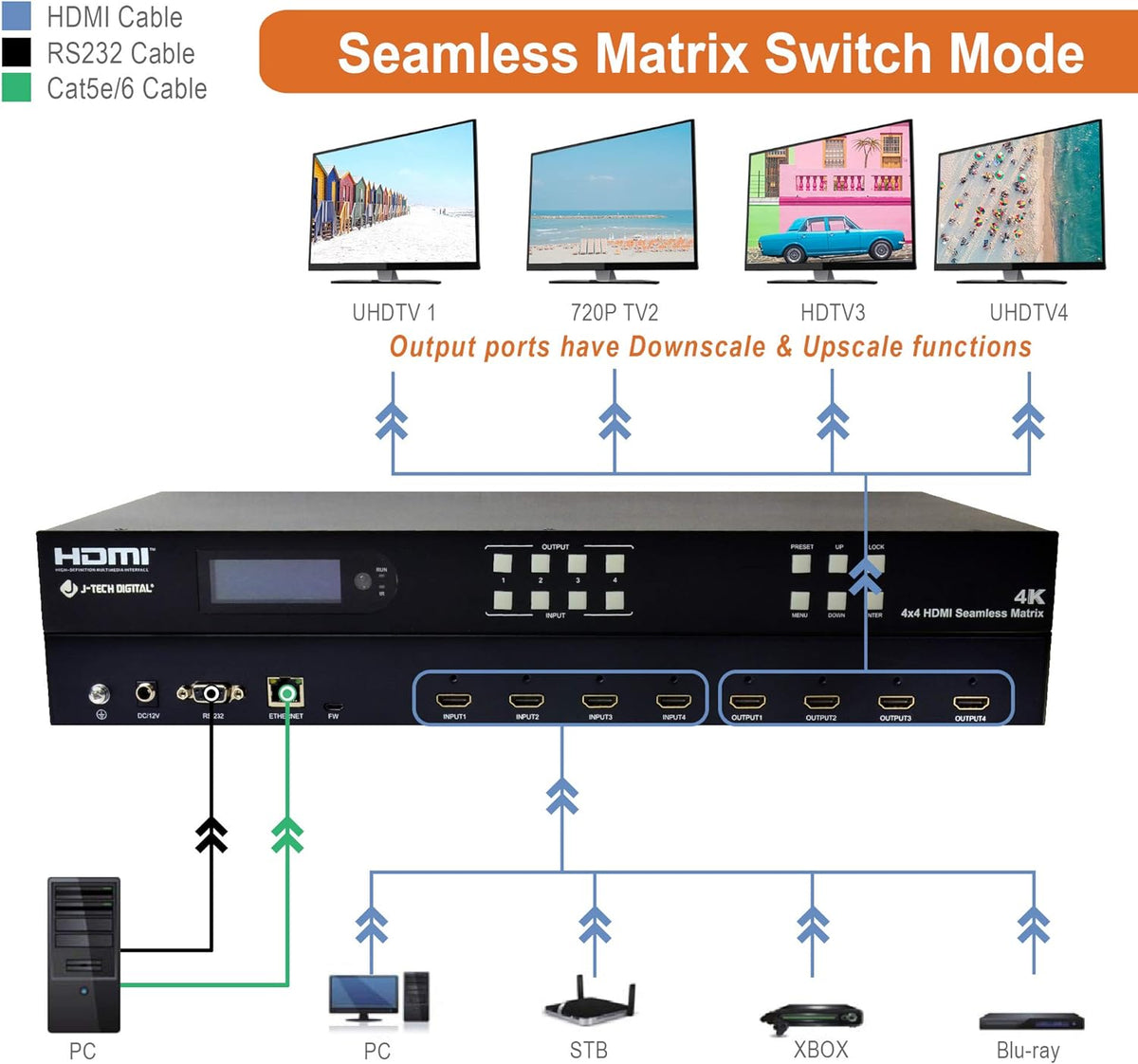

- Route any 4K@60Hz 4:2:0 input signals to any combination of 4 output displays seamlessly with no switching delay or picture loss.

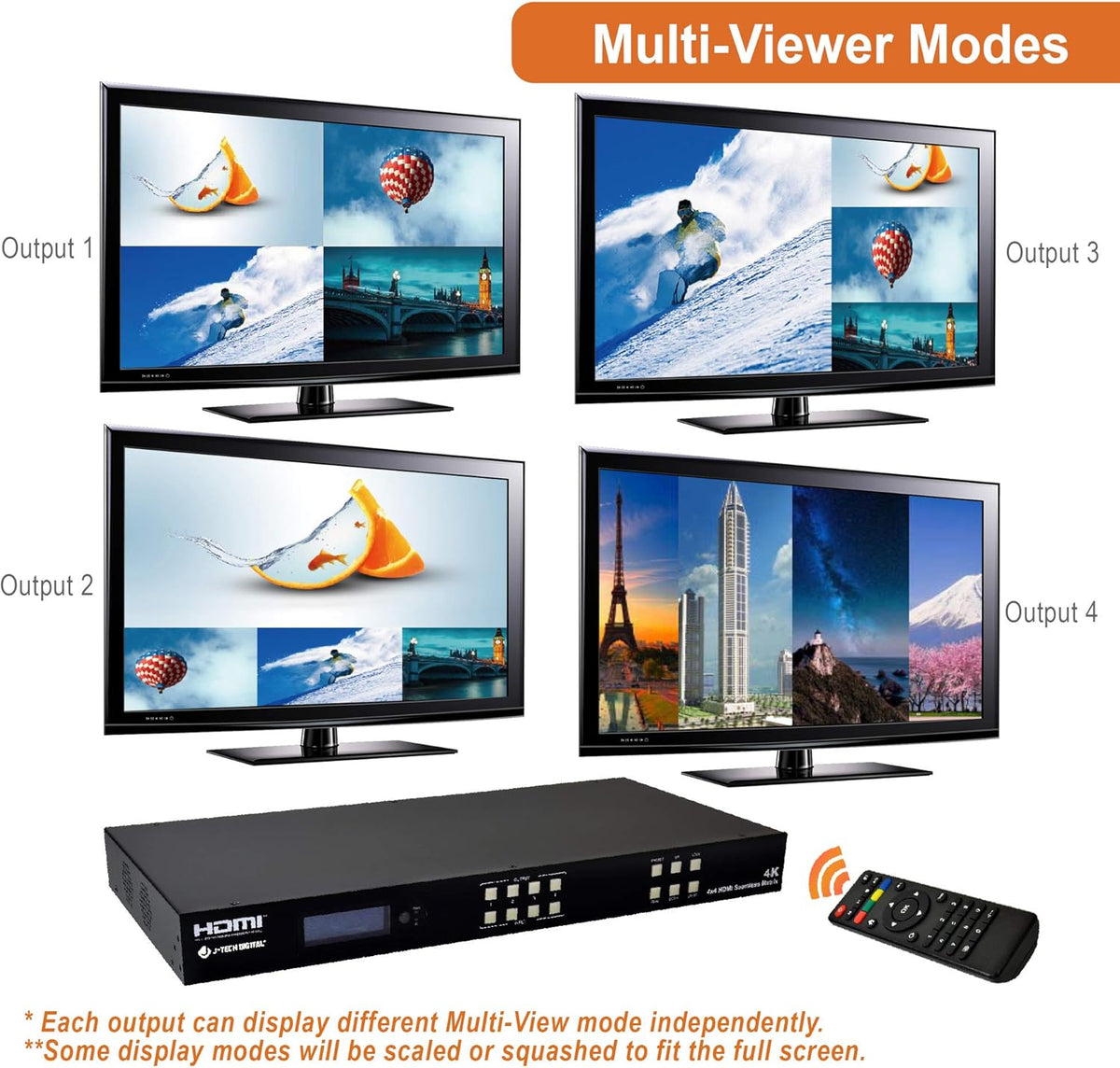

- Each HDMI output can choose from 5 different multiviewer presets allowing the end user to view all 4 source signals on one screen (2×2, 1x3L, 1x3U, 1×4, 4×1)

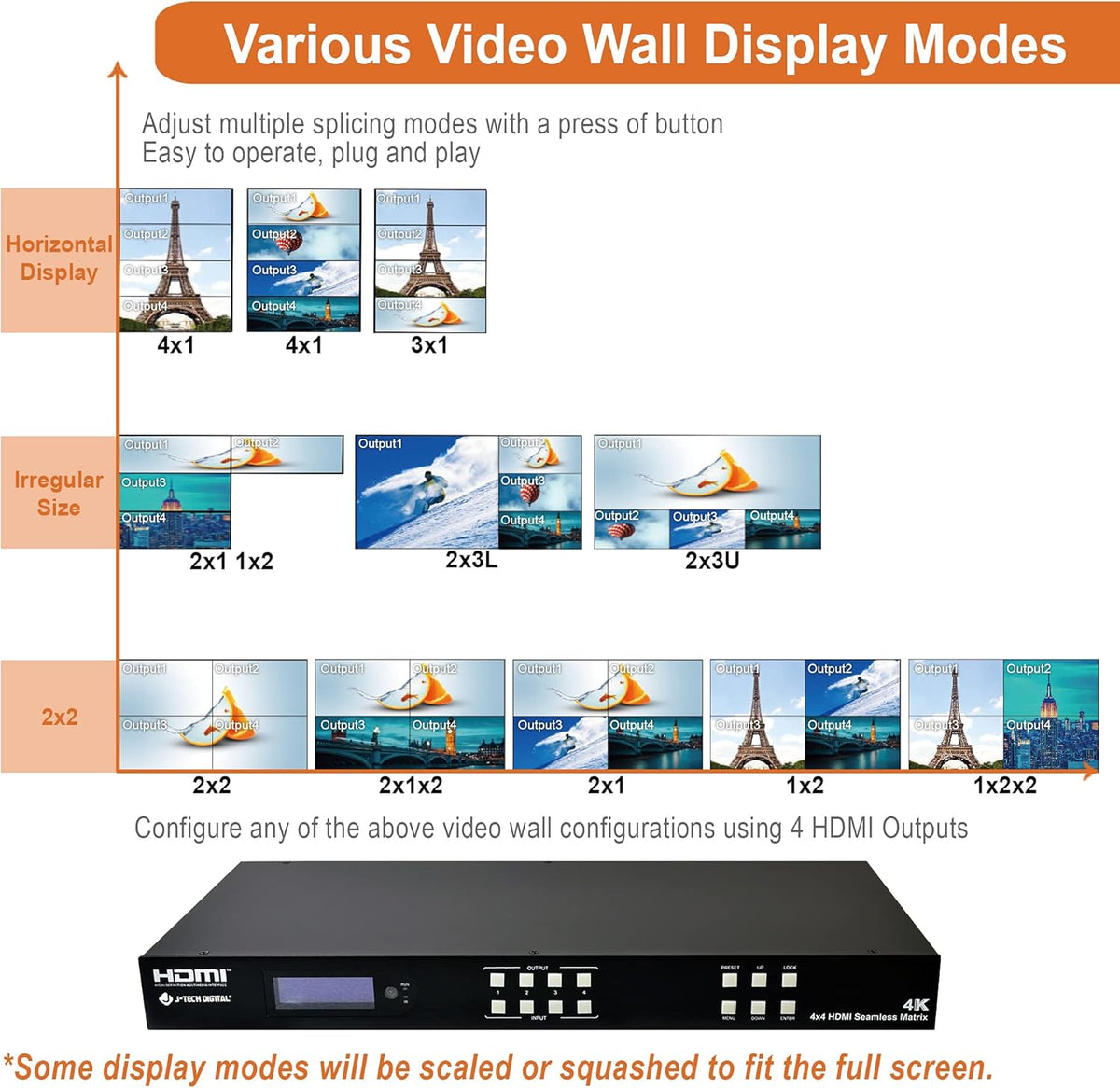

- 4 HDMI outputs allow user to create 10 different video wall configurations including 2×2, 1×4 and 4×1. Rotate function allows the user to flip any output image 180°.
- Take advantage of the JTECH-VWM04 ‘s versatility and upscale or downscale your output resolution to 4K30HZ/ 1080P / 720P / 2560 x 1440 / 1920 x 1200 / 1360 x 768
– All J-Tech Digital products include a One-Year Manufacturer Replacement Warranty and free lifetime technical support from our customer support team located in Sugar Land, TX. Support is available from 9AM – 6PM CST, Monday through Friday. Contact information available on our seller page.
Electronics Accessories & Supplies Audio & Video Accessories
4K60Hz HDMI Video Wall Controller Multiviewer Seamless Switch Matrix W1422
Sale price
$39.95
Regular price $162.10
Shipping calculated at checkout.
- Route any 4K@60Hz 4:2:0 input signals to any combination of 4 output displays seamlessly with no switching delay or picture loss.
- Each HDMI output can choose from 5 different multiviewer presets allowing the end user to view all 4 source signals on one screen (2×2, 1x3L, 1x3U, 1×4, 4×1)
- 4 HDMI outputs allow user to create 10 different video wall configurations including 2×2, 1×4 and 4×1. Rotate function allows the user to flip any output image 180°.
- Take advantage of the JTECH-VWM04 ‘s versatility and upscale or downscale your output resolution to 4K30HZ/ 1080P / 720P / 2560 x 1440 / 1920 x 1200 / 1360 x 768
– All J-Tech Digital products include a One-Year Manufacturer Replacement Warranty and free lifetime technical support from our customer support team located in Sugar Land, TX. Support is available from 9AM – 6PM CST, Monday through Friday. Contact information available on our seller page.
| JTECH-VWM04 | JTECH-VW03 | JTECH-VW02 | JTECH-VW09 | JTECH-VW05 | |
|---|---|---|---|---|---|
| Main Function | 2x2@4K60 | 3x3@1080p | 2x2@1080p | 3x3@4K30 | 2x2@4K60 |
| HDMI Ver | HDCP Ver | HDMI 1.4 | HDCP 2.2 | HDMI 1.3 | HDCP 1.4 | HDMI 1.4 | HDCP 1.4 | HDMI 1.4 | HDCP 1.4 | HDMI 1.4 | HDCP 2.2 |
| Inputs | 4 x HDMI | 1 x HDMI | RS-232 | 1 x HDMI | 1 x VGA + 3.5mm | 1 x RCA | 1 x USB | 1 x HDMI | 1 x VGA | 1 x DP | 1 x USB | 1 x HDMI |
| HDMI Outputs | 4 | 9 | 1 | 9 | 4 |
| Max VW Config | 2x2 | 3x3 | 2x2 | 3x3 | 2x2 |
| Other Functions | Upscale | Downscale | Multiviewer | 13 Display Mode | Cascading Up to 10x10 | Cascading Up to 10x10 | Image Rotation |
| Control | Panel | IR | WEB | RS-232 | IR | RS-232 | Panel | IR | RS-232 | Control4 | JTD P8 Driver | Panel | IR | WEB | RS-232 | Panel | IR |
| Matrix Mode | Yes | No | No | No | No |
